Release Notes
What’s new in 3decision?
For a comprehensive 3decision feature portfolio, download our Functional description document.
3decision 1.8 | January, 2024
AlphaFold Integration in 3decision
3decision incorporates fully annotated AlphaFold (AF) structures of the human proteome into its database, enhancing the depth of available data within the software. This integration of over 23,000 AF structures, complement the pre-existing models in 3decision, sourced from the PDB and the Swiss-Model database, while also accommodating in-house protein structures. The addition of this new dataset can result in a faster and more efficient drug discovery process by providing additional protein structures that can then be used in collaborative projects for analysis and ideation.
Click to Zoom in: AF model in the 3decision 3D Viewer, color-coded by the AlphafoldDB structural confidence score (pLDDT)
On top of the human AF models, users can easily register AF models from other species of interest in just a few clicks. This allows the enrichment of the database with all the relevant information for advancing drug discovery projects. For instance, incorporating structural insights from mouse or rat models may be beneficial in selecting animal models for in vivo drug studies.
Click to Zoom in: Registration page for AF models in 3decision
Upon registration in the 3decision database, AF models undergo the same analysis and processing as any other 3D protein structure deposited in the database. This allows the user to integrate the information provided by these additional structures into their workflows. From basic tasks (like search and visualization) up to advanced analytic functions (for instance, pocket similarity search), AF models are now fully available for supporting 3decision users in their drug discovery efforts.
Click to Zoom in: Comparison between AF model vs experimental
3decision 1.6 | June, 2023
Protein-Ligand Interaction-Based
A large amount of structural data on protein-ligand (P-L) interactions provides a knowledge base for scientists working in molecular design. To exploit these data at their best, we developed the interaction search feature that is now available again, after the 3decision back-end revamp.
This systematic structural search allows you to mine and access P-L interaction information which can drive the ideation process of new molecular entities as well as help find putative off-targets through cross-target investigation.
How does the Interaction search feature work?
Interaction search enables you to gather, in a few minutes, systems containing a 3D query pattern of interactions by mining the entire PDB database (and more)
The search is based on a selection of interactions that the user provided as a query system
Interactants and interaction type, interaction length, and orientation tolerance can be refined, offering the user the freedom to define the level of fuzziness of the search.
The search results are ranked based on score and can be automatically superposed in the 3D Viewer.
Click to Zoom in to see interaction search interface and check it out in action in this video
Access the webinar about the drug design idea generation for scaffold hopping with the Interaction Search feature
Visualization of MTZ Maps
3decision now supports the display of MTZ files. You can upload an mtz. file directly through the structure information widget. The electron density maps are computed on-the-fly, and 2Fo-Fc and Fo-Fc maps are automatically opened in the 3D Viewer.
Click to Zoom in: Visualization of mtz. files in 3decision
3decision 1.5 | April, 2023
Calculation of Protein-Ligand Interactions for Proprietary Structures

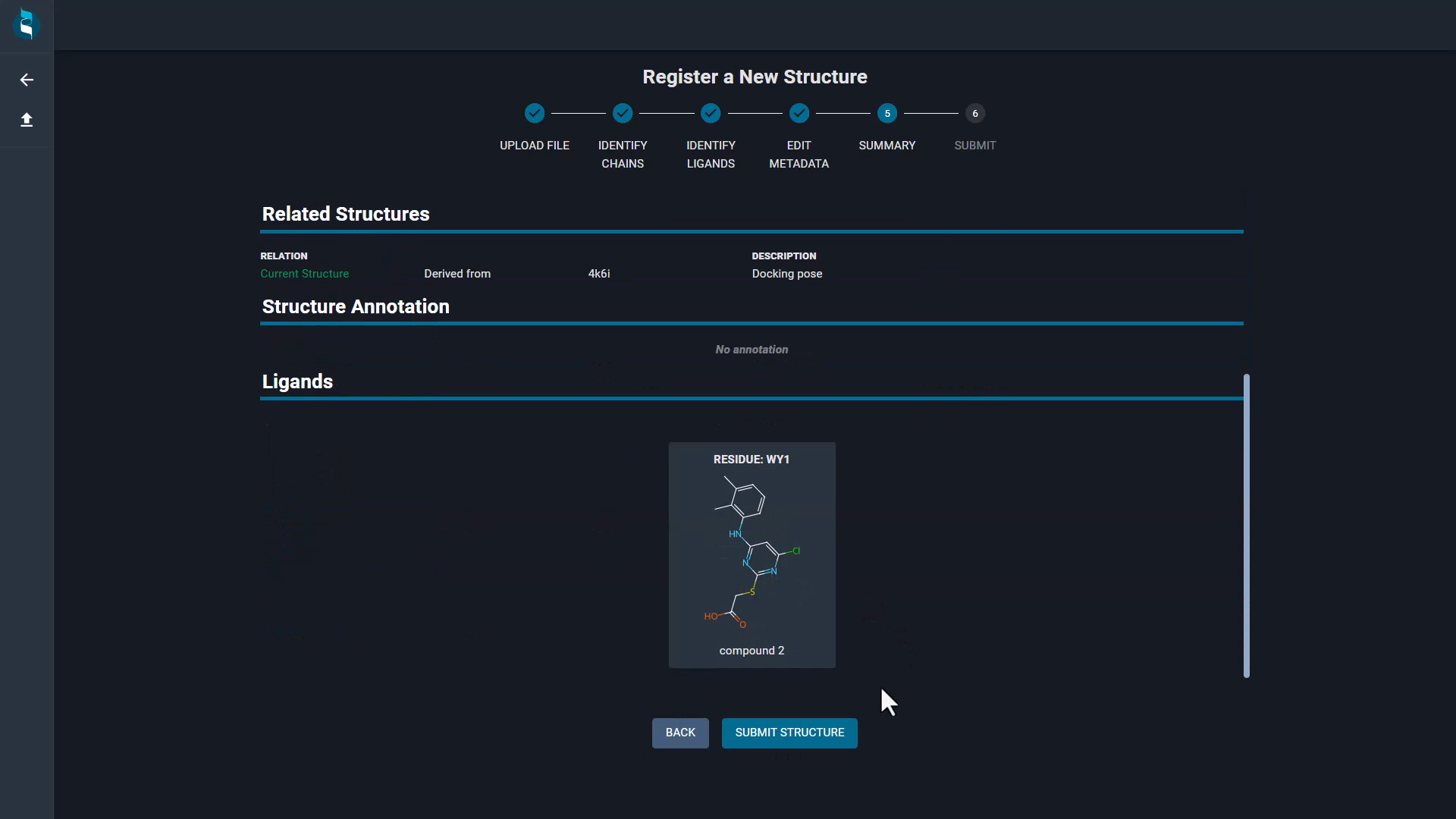

When you open a proprietary protein structure in a complex with a ligand in the 3D Viewer, all Protein-Ligand interactions are automatically displayed. Those interactions are calculated and characterized upon registration of the structure in the 3decision database. This feature allows you to easily inspect the ligand binding mode without the necessity of exporting the structure in another program.
Click to Zoom in: Visualization of protein-ligand contacts upon opening a proprietary structure
Bond Order Display
From now on, correct ligand bond orders are displayed in the 3D Viewer, and each ligand gets its representation card for visibility and color management.
Click to Zoom in: Bond order display in the 3D Viewer (right)
Additional Updates:
We have worked on the release of other updates, such as:
Uploading files to a structure or a project is now possible from any file browsing view (Workspace and Project Dashboard)
Project-related files are now accessible directly from the Workspace
Superposition of structures is now enabled from the ligand panel too
3decision 1.4 | February, 2023
Pocket Similarity Search: Global Pocket and Subpocket Search
The search capabilities of 3decision are being extended with the release of the pocket and sub-pocket similarity search, allowing you to mine the structural proteome for global and similar local protein environments.
Usecases:
Identify potential off-targets or search for chemical matter that fits in a similar environment in other structures
Find structures of your target that have a specific conformation of the binding site (e.g. type II binding sites in kinases, closed conformation of HSP90)
How does the subpocket search work?
The user selects a set of amino acids in the binding site then a panel opens allowing to parametrize the query. Once results are back, the user can automatically superpose the hit to the query using the matching residues by simply clicking on a retrieved structure
Click to Zoom in: 3decision sub-pocket search feature. See the video →
Click below to access the Webinar introducing the Subpocket Search feature methodology and use cases
3decision 1.3 | December, 2022
Download and Display of the Public Cryo-EM Maps
In addition to the X-Ray and NMR electron density maps that are automatically retrieved from RCSB PDB, you can now open and visualize the maps of Cryo-EM structures coming from EMDB.
Click to Zoom in: Electron density Cryo-EM map display
Public Access to 3decision User Guide
The user guide of 3decision is publicly available via this link. Moreover, the 3decision users can access the Guide via the application using the “Help” button.
3decision 1.2 | September, 2022
Project Dashboard and Reference Structure Orientation
The Project Dashboard is a centralized view of your project structures, ligands, and files. It summarizes all data associated to your project. It allows you to accomplish following tasks:
Isolate and share stuctures only with a subset of users
Keep an organized list of structures of interest for a project
Define a reference structure and viewpoint to standardize views
In its simplest form, a project is a list of structures of interest a user can share with other users.
Users can set the reference and default viewpoint for a project once and for all. To do so, user can select the pocket of interest, set it as a reference and every structure in the project will be oriented the same way
Click to Zoom in: Reference Structure Setup
Display protein-protein interaction in the 3D Viewer
This 3decision feature allows you to visualize protein-protein interactions (PPIs) and compare them with interactions in other structures.
You are able to display contacts between protein chains in the 3D Viewer. The contacts are generated on the fly using NGL and are not registered in the database.
Click to Zoom in: Protein-protein interactions display
3decision 1.1 | April, 2022
Annotation Browser
The Annotation Browser allows to map structure and sequence annotations onto a 3D structure. This feature also allows you to add and visualize your own annotations.
This layout combines, on the left side, sequence annotations which have interactive selection with the 3D Viewer, on the right side. Each protein chain in the structure is displayed on the left under its Uniprot identifier. The full sequence and a list of annotations, coming from various sources are displayed.
Usecases :
Highlight a CDR motif on an antibody structure
Examine which part of the canonical sequence is covered by the resolved structure
Localize a residue on a 3D structure using a protein-specific numbering scheme (e.g. Ballesteros–Weinstein for GPCRs)
Add a new sequence annotation (e.g. result of a point-mutation) 3decision 1.1
Click to see the video of the Annotation Search feature
3decision 1.0 | January, 2022
Highlight Mode
To ease the multi-structural analysis, this new feature enables users to spot the differences and/or common parts of the superposed binding sites in the blink of an eye — one more tool to further support easy pocket comparison.
Click to Zoom in: 3decision highlight mode 💡
Pocket Browser
The Pocket Browser allows the user to explore all pockets and ligands of a given protein structure. Both ligand-binding sites and ligand-agnostic pockets are identified and characterized by fpocket when a structure is registered in 3decision. Each pocket is characterized based on the properties such as druggability, polarity, volume, hydrophobicity, and charge.
There are two types of pockets:
explicit pockets, when the pocket is defined by the presence of a ligand (represented by squares in the legacy version)
implicit pockets are pockets detected by fpocket (represented by circles in the legacy version)
The Pocket Browser table is interactive with the 3D structural information. Click on the pockets to navigate in the structure through the different pockets.
Easier Comparison of Grids & Electron Density Maps on Superposed Structures
When superposing two structures and fetching (or importing) electron density maps, they are automatically re-oriented along with the superposed structures.
User Groups and Privileges
It is now possible to organize team members into User Groups to control data access and actions and to easily share content. Each of these actions is well defined through the completely new set of features, covered by the term “Privilege Management.” Privileges are introduced to allow users to do particular actions, such as to view/create/update/remove specific structures or projects.
Search / Advanced Search and Speed Improvement
3decision®'s knowledge-base can be explored through various search queries:
Text search (Free text, UniProt code, Gene name, Protein family, PDB code, Ligand ID, etc.)
Chemistry search
Exact match
Similarity search
Substructure
User can combine text and chemistry searches by adding each of the two partial search in the right panel.
3decision public REST API release allows management of
Structures: registration (bulk)/ Removal, retrieval of files and associated ligands.
Metadata: projects, annotations, crystallographic parameters
Associated files: .ccp4, .mtz, .pdf, .sdf
Project management
The complete list of REST endpoints can be shared on-demand.
3decision has a unique structure registration and analysis process through API endpoints. It covers:
Structure-to-sequence mapping
Ligand mapping
Pocket analysis
Pocket feature analysis
Ligand to pocket mapping
Protein-ligand contact analysis
Click to Zoom in: 3decision Rest API
The first version of 3decision has been released in 2018 and gradually upgraded with various features. In 2022, the backend of the 3decision solution has been revamped to improve customer experience and enhance the performance. The release notes are based on the new version.
